One case. Every capability.
Deployable 5G and LEO satellite connectivity, combined into a single rugged enclosure.
Press the button and you're online in five minutes.
Explore the RBK
Key Features
Take a closer look
Designed and built in Britain
Every RBK is designed, developed, manufactured and tested in the United Kingdom. The same team takes the unit from first concept sketch to final sign-off, so build records stay with the product and support comes from the people who made it.
Keeping the whole process in one place shortens the loop between what the field reports and what changes on the production line.
Enclosure, antenna layout and thermal path are modelled in-house before anything is cut. Every decision is weighed against carry weight, one-handed setup and how the unit behaves once it is wet, cold or covered in dust.
RF, power and software engineers work from the same bench, so routing, mesh behaviour and interface are tuned as one system. Prototypes go out to operators early and come back with notes that shape the next revision.
Machining, board assembly and final build are all handled by our British partners. Components are traced to their source and each unit carries a build record that stays with it for the life of the product.
Units are cycled through temperature, ingress, drop and RF range testing, then bench-checked individually before dispatch. Nothing leaves the building until it has held its link under the conditions it is rated for.
What's in the box
Technical Specification
01General+
| Product | Praxym RBK — Rapid Broadband Kit |
|---|---|
| Type | Rugged deployable communications platform |
| Manufacture | Designed, manufactured and supported in the UK |
| Compliance | CE approved · IP66 rated |
| Patent | Patent pending. GB Patent Application No. 2609959.8. |
02Physical+
| Weight | 7.87 kg (complete system including battery, router and LEO terminal) |
|---|---|
| Dimensions | 320mm × 399mm × 106mm |

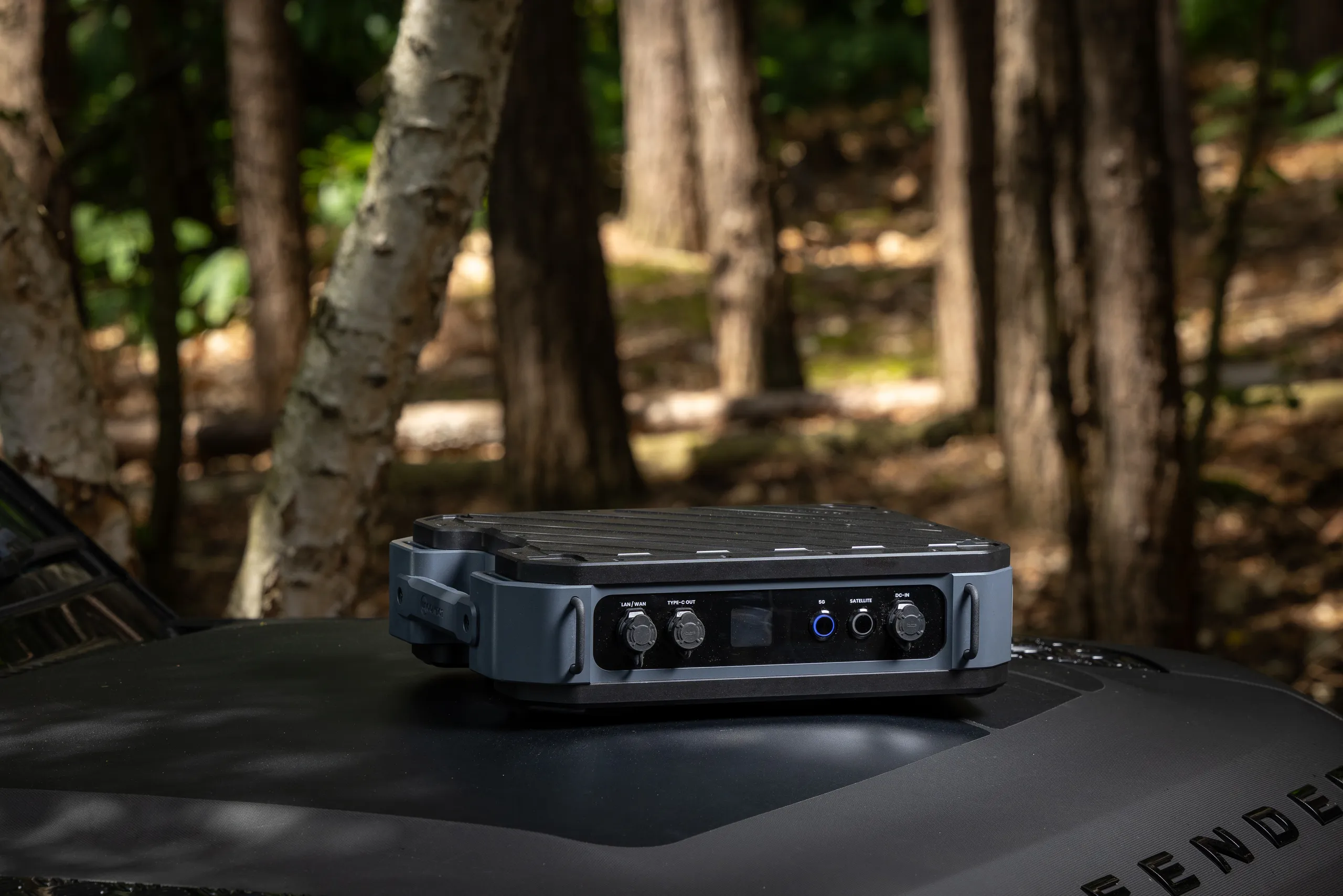

| Mounting | 4× M6 universal mounting holes |

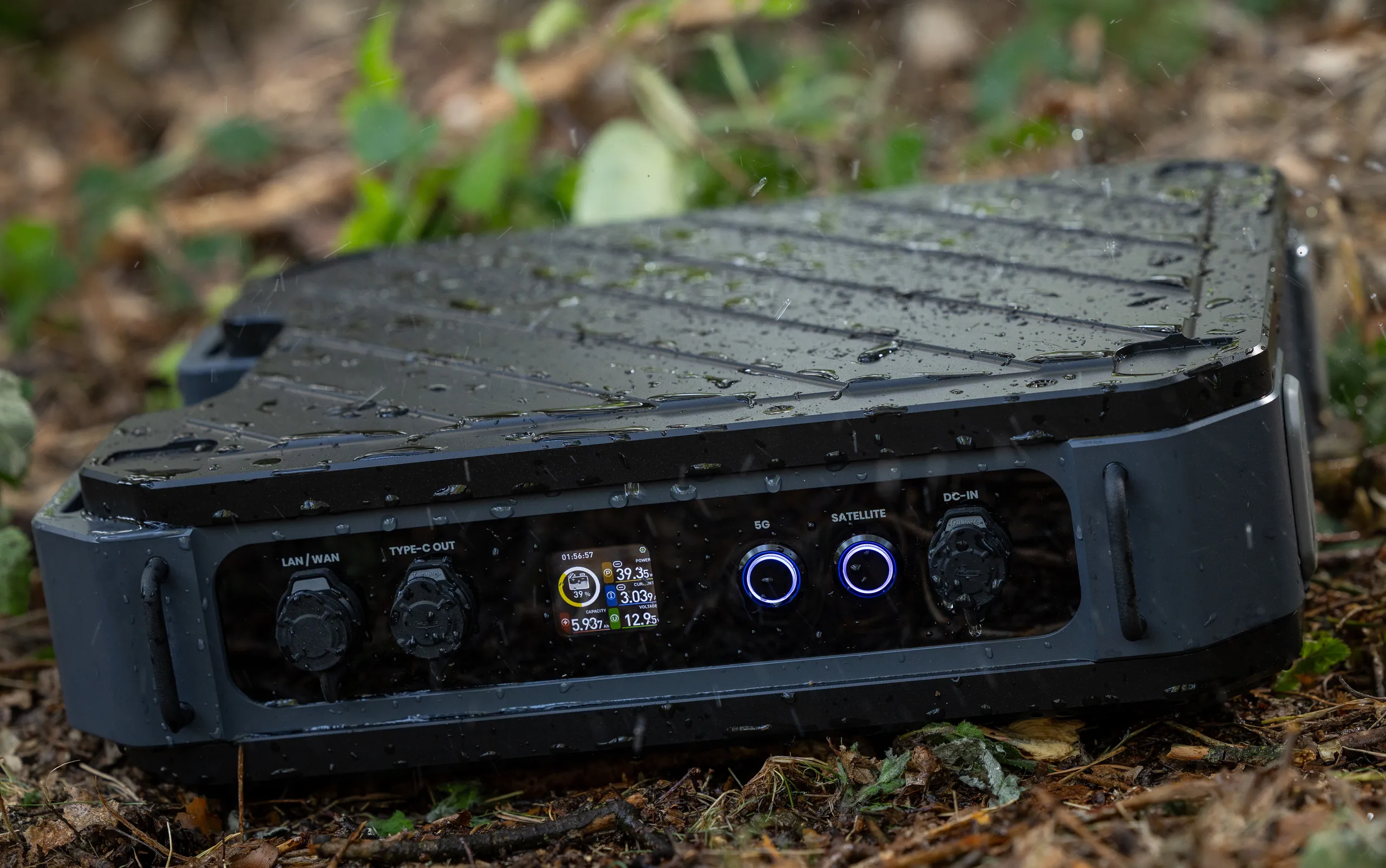

| Environmental Rating | IP66 — protected against dust and water |
| Operating Temperature | -40°C to +70°C (subject to configuration and conditions) |
03Connectivity+
| Router | Ericsson Cradlepoint R980 (enterprise-grade managed router) |
|---|---|
| Cellular | 4G/5G depending on router configuration |
| LEO Satellite | Works with various LEO Satellite providers |
| Satellite Performance | Subject to selected terminal and service availability |
| Antennas | 4G/5G Cellular × 4, Wi-Fi × 2, GNSS × 1 (integrated internal) |
| GNSS | Supported — integrated internal antenna |
04Interfaces & users+
| Ports | LAN/WAN × 1, USB-C × 1, DC-IN × 1 |
|---|---|
| WAN / LAN | Configurable — contact Praxym for options |
| Peripheral Charging | USB-C output (reverse charging, 5V DC) |
| User Capacity | 100+ concurrent users via Wi-Fi / Ethernet (configuration dependent) |
05Power+
| Battery Chemistry | 12.8V 15Ah LiFePO4 |
|---|---|
| Cellular Runtime | Up to 45 hours (5G single uplink) |
| Satellite / Combined Runtime | ~8 hours (dual uplink operation) |
| Power Sources | Internal battery · 12V vehicle · AC mains |
| Battery Display | Battery %, voltage, remaining runtime, low-battery alert |
| Managed Service | 24/7 NOC monitoring and support available through UK Connect |
Downloads
Questions, answered.

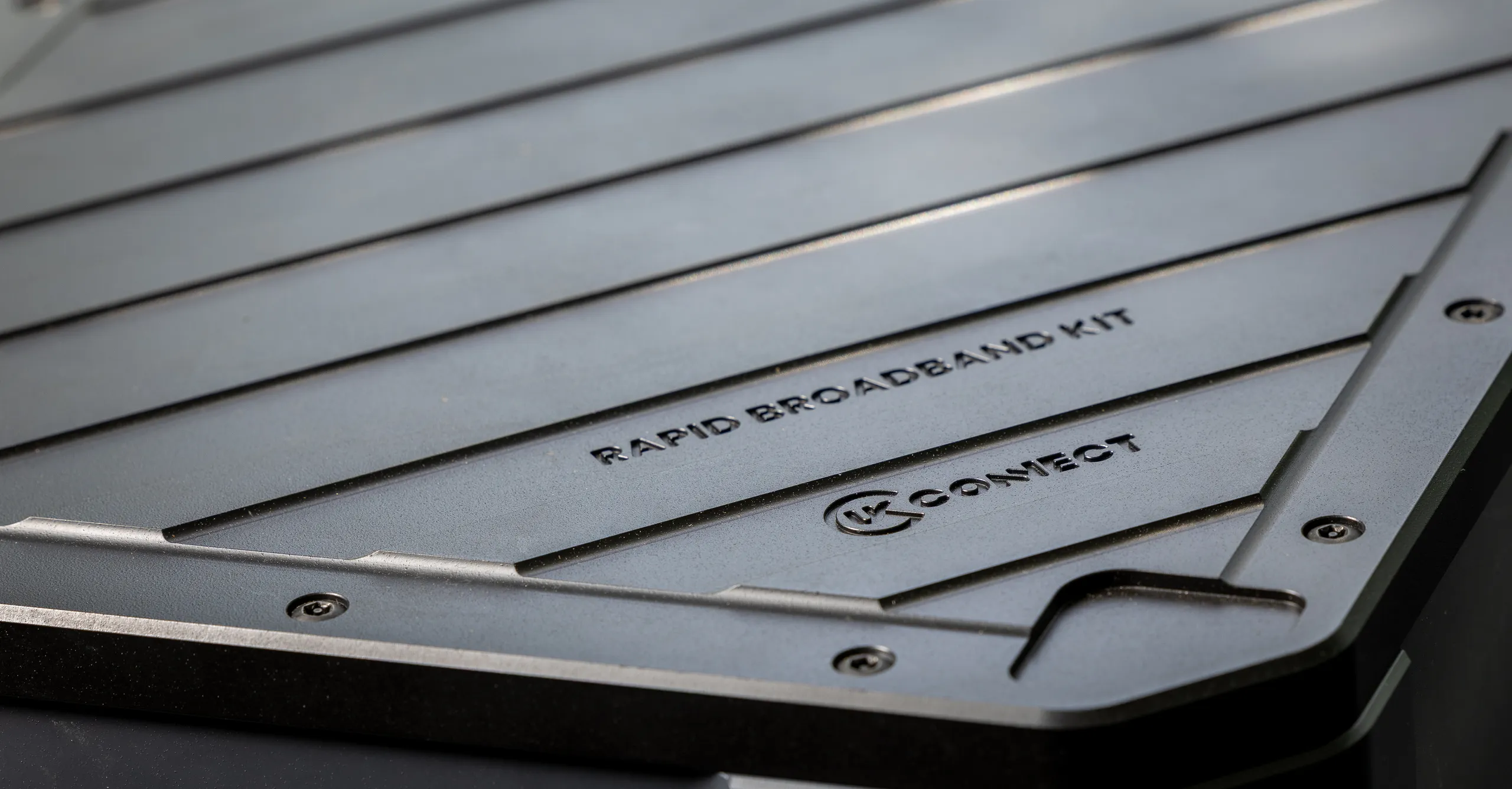

A purpose-engineered monocoque enclosure integrating an enterprise-grade router, LiFePO4 battery, field-accessible interfaces, integrated 5G, GNSS and Wi-Fi antennas, and support for selected LEO terminal configurations. Configuration varies by buying route.
RBK has been developed with defence user feedback and is in use with Royal Air Force users. Contact Praxym for procurement documentation.
RBK uses a LiFePO4 battery providing up to approximately 45 hours on cellular (5G) connectivity alone. When operating in dual-uplink mode (cellular and LEO satellite simultaneously), battery life is approximately 8 hours. Actual performance varies with signal conditions, connected devices and environmental temperature. External 12V DC or AC mains power can be used for continuous operation.

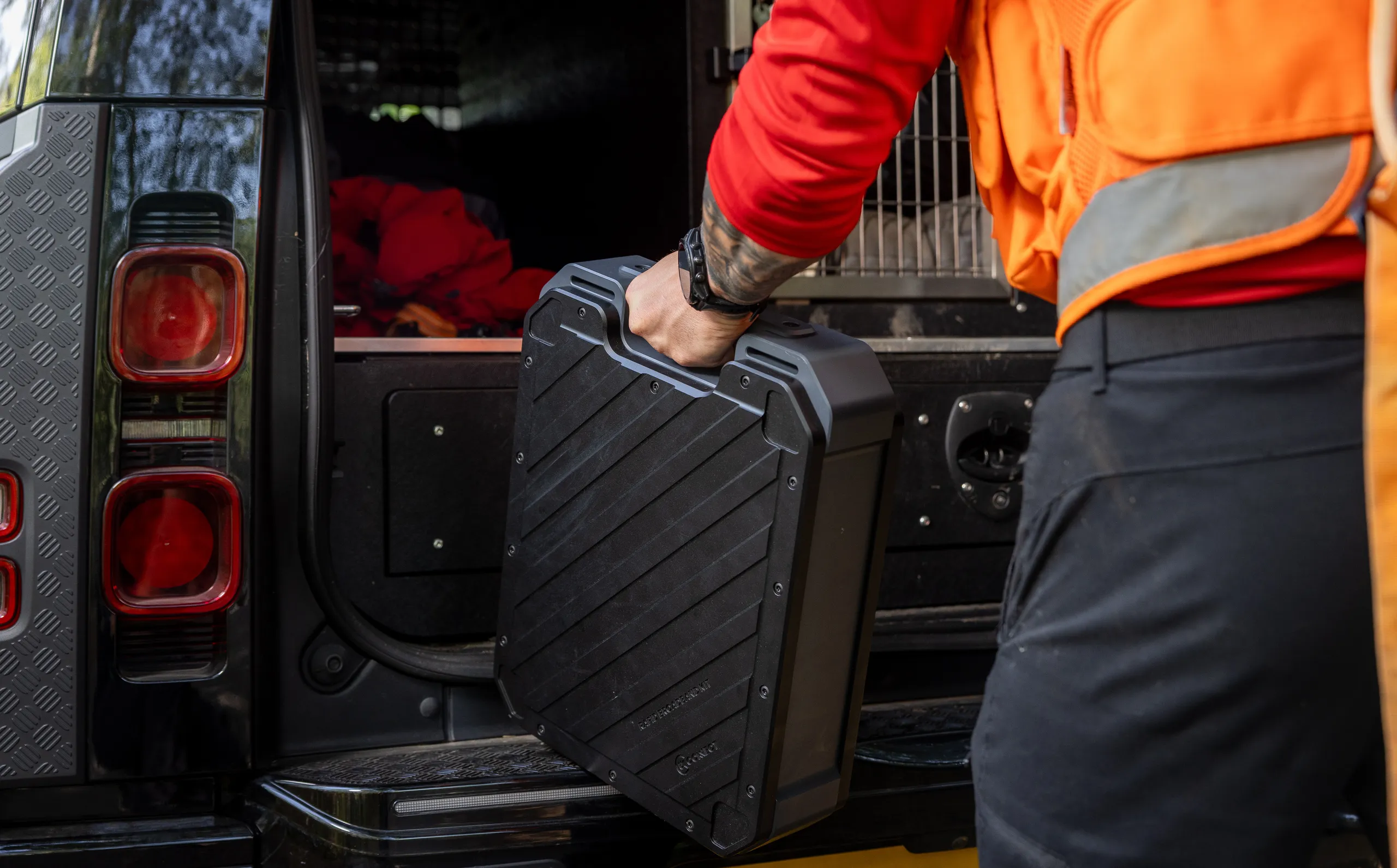

RBK measures 320mm × 399mm × 106mm and weighs 7.87 kg, including the battery, router and satellite receiver. It is designed as a single-person-carry unit, and the monocoque enclosure is compact enough to fit in a vehicle boot or equipment locker.
RBK is UK-manufactured and available for pre-order. Lead times depend on configuration and quantity. Contact Praxym directly to discuss your timeline and receive a delivery estimate tailored to your requirement.
All RBK units include standard product support covering documentation, user guides, deployment guidance and direct technical support. Warranty terms are confirmed during quotation based on configuration and service package. Extended support and 24/7 managed service monitoring via the UK Connect NOC are available as optional additions.
Yes. Praxym offers operator and administrator training for teams deploying RBK in field environments. Training can be delivered remotely or on-site and covers deployment procedures, router configuration, troubleshooting and best practices. Training documentation is provided as part of the programme.
Yes. Through UK Connect, managed service customers receive 24/7 NOC monitoring, proactive fault detection, incident response and regular service reporting. The managed service is available as an addition to the RBK hardware and includes SLA-backed support and a dedicated service management contact.
Trial unit availability is offered to qualifying organisations on a case-by-case basis. Contact Praxym to discuss your requirement, operational environment and evaluation criteria. Trial arrangements are typically confirmed following an initial briefing or demonstration.
